CP-Z Metal

Type: CP-Z Metal

Advantages:

+ Steel overlay
+ Simultaneously supports two protocols (EM Marine, HID)
+ Low price

Manual

Compare
Category:

Description

Technical specification:

Operating frequency: 125 KHz
Card Reader & tags standard: HID ProxCard II, EM Marine
Reading range: 6-10 cm
Power supply: 8 – 18 V DC
Current consumption: 50mA (max)
Sound indicator: the buzzer
Operating temperature: -40 ° C to +50 ° C
Case Material: ABS plastic, steel
Output Interface: Wiegand 26, Dallas Touch Memory (emulation DS1990A)
The maximum line length from the reader to the controller:
– Using the DS1990A, no more, 15m
– Using Wiegand, no more than 100m

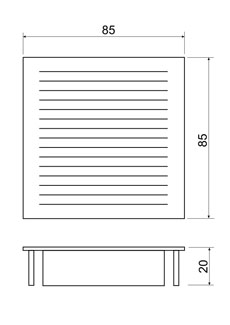

Size (mm):85х85х20

Examples:

Vandal proof reader. No fasteners from the outside. Strong reading cards through the metal. The thickness of the slot composes several microns.
