Technical specification:

Chip type only 125Khz: EM4100, EM4102, T5557, Hitag1, Hitag2
Dimensions (mm): see the table below
Material: ABS
Color: optional
Storage temperature: -40 … +75 C
Packing: 30 pcs. / Box, 600 pcs. box

Minimum Qty: 5Compare



It is not always possible to glue, sew or fix RFID tag in the traditional way. Why not embed RFID chip directly into the body of the bolt. Bolts are already using RFID to track and identify products and modules in the aerospace, military, medical and other fields that require precise control over the modules and products.

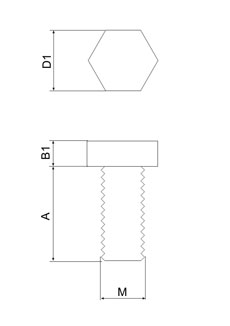

Diameter A B1 B2 D1
M-12 20.0 6.5 7.2 18.8
M-10 20.0 5.5 6.5 16.8
M-8 20.0 5.5 5.8 13.8
M-6 20.0 4.5 5.4 9.8
