Showing 19–27 of 28 results
-

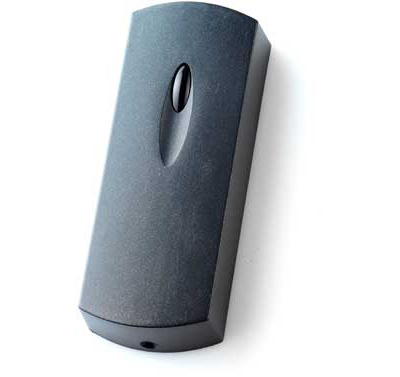

Matrix-III EH reader EM-Marine & HID PROX II, Dallas TM (emulation of DS1990A), Wiegand 26, IP65, 125kHz
Matrix III EH RFID reader is designed for using in the network and standalone access control systems. Matrix III EH reader supports EM Marine and HID ProxCard II 125KHz keys and connects to the controllers via iButton (1-Wire) or Wiegand-26 protocol.
Matrix III EH reader automatically detects keys standard for simultaneous using of EM Marine and HID ProxCard II keys. There is a possibility of external control of visual and sound indication without additional connections.
-
Matrix-III MF-I reader for Mifare, Dallas TM (emulation of DS1990A), Wiegand 26, IP65, 13,56 MHz – IronLogic Protected Technology (crypto)
Matrix III EH RFID reader is designed for using in the network and standalone access control systems. Matrix III MF Reader supports ISO 14443 RFID tags and connects to the controllers via iButton (1-Wire) or Wiegand-26 protocol.
There is a possibility of external control of visual and sound indication without additional connections.
-
Matrix-III NFC reader 13.56mHz
The Matrix-III reader (mod. NFC) is used in access control systems (ACS) to transmit to the controller the code of the ISO 14443-A standard identifier (card, key fob, bracelet, NFC of a smartphone, etc.) via the iButton (Dallas Touch Memory) or Wiegand protocols. The reader works with the following cards: Mifare Classic 1K and 4K, Classic EV1 1K and 4K, ID and Mini. Mifare Plus in SE, S, X, EV1, EV2 (1, 2 and 4 KB), Ultra Light (C), Mifare DESFire and PAN. The reader supports cards with a high degree of data protection using the 3DES and AES algorithms.
-

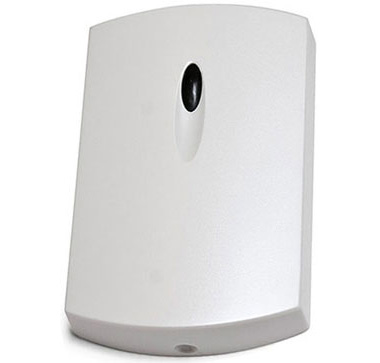

Matrix-III RD-ALL reader for EM-Marine & HID PROX II & Mifare , Dallas TM (emulation of DS1990A), Wiegand 26, RS-232, RS485, 125 kHz & 13,56 MHz
Advantages:
Simultaneous dual-band 13,56 MHz & 125KHz The choice of communication interfaces Moisture-and dust-proof case Attractive price Configuration or firmware update -
Matrix-IV EH Keys reader for EM-Marine & HID PROX II, keyboard , Dallas TM (emulation of DS1990A), Wiegand 26 125 kHz
Advantages:
The elegant caing Flush mounting The keyboard backlight Quick installation and connection Integration of network and stand-alone systems -
Matrix-V reader for EM-Marine & Keeloq, Long range >60cm, Dallas TM (emulation of DS1990A), Wiegand 26, RS485, 433,92 MHz & 125 kHz
Reader 125КHz, 433mHz
Advantages:
Long range card reader EM-Marine Working with remote control IL-99/100 (Keeloq) Working with remote control CAME Series Top 433.92MHz Watertight enclosure Resistant to vibration and mechanical shock Quick installation and connection Integration of network and stand-alone systems Working with a terminal program (such as HyperTerminal) low price -
RFID reader 125KHz
Matrix IV HOTEL
Advantages:
Night light Sleep Timer -

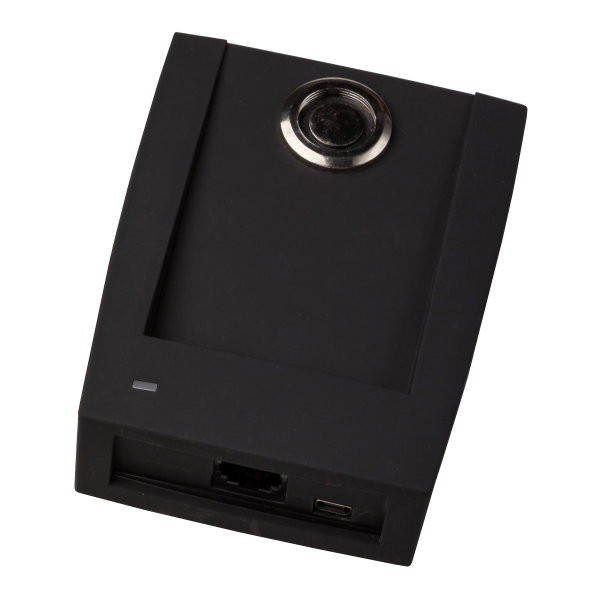

Z-2 EHR USB reader EM-Marine &Keeloq receiver & iButton, 125 kHz & 433,92 MHz
Desktop RFID / iButton 125KHz and 433.92MHz Z-2 USB EHR reader with USB connection is designed for fast transfer of keys database with Base Z-5R software from the standalone controllers Iron Logic to PC and back, which reduces the maintenance cost and makes operations of controllers easier for installation companies.
-
Z-2 USB MF reader for Mifare (read/write), 13,56 MHz
Desktop multiformat reader Z-2 USB MF with USB connection allows you to read ID numbers and data from Mifare 13.56MHz keys. Z-2 USB MF also can write on Mifare Classic 1K, Mifare Classic 4K, Mifare ID keys. All this allows successfully apply desktop reader Z-2 USB MF for discount and payment systems, rental stations, access control systems, identification, personalization and other projects using RFID technology.
Manual
